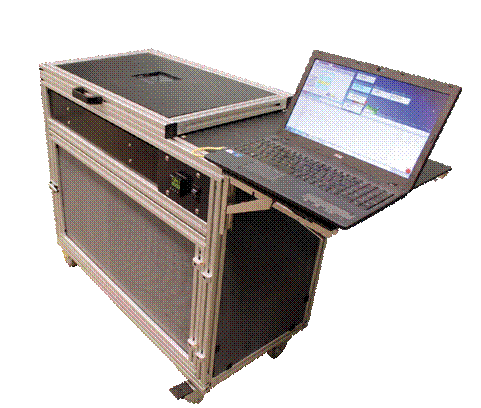

Disk-shaped Compact Tension Machine
• Portable — weighs 420 lbs
• Runs from a 115V outlet

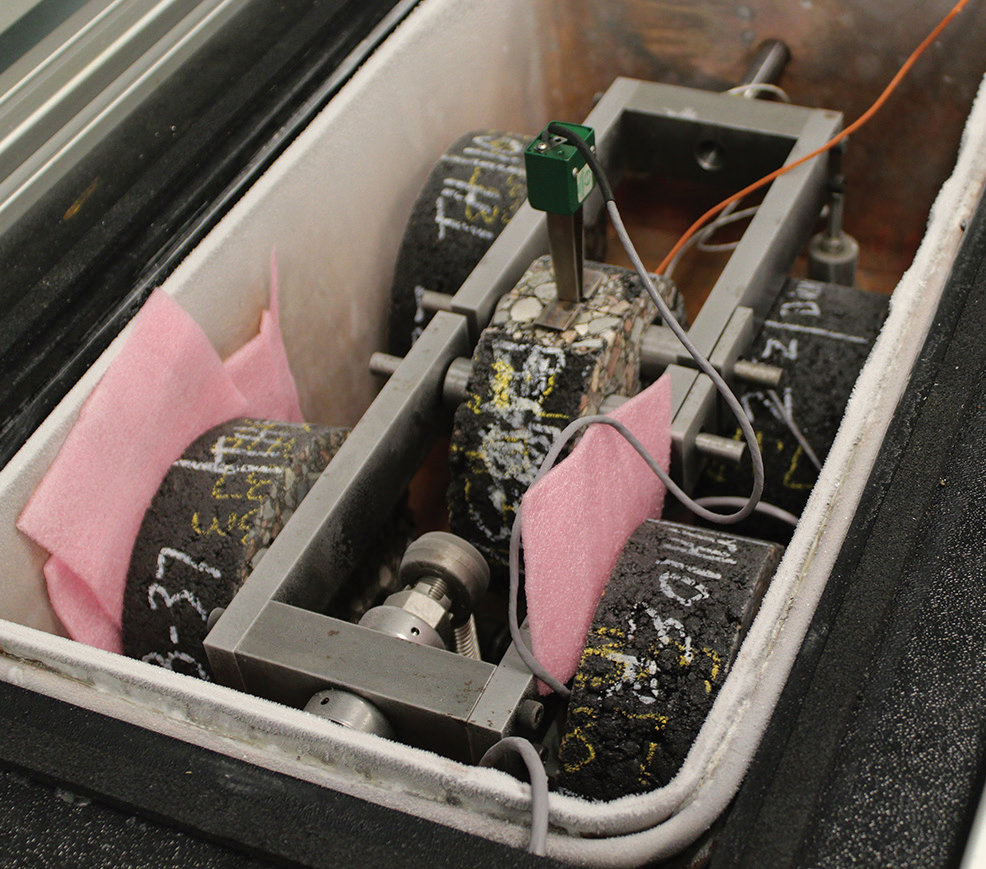

• The environmental chamber cools to -39 C
• Runs from a 115V outlet
• The environmental chamber cools to -39 C
• Results of test printed and plotted immediately! No Post Processing!
A 1 GPM pump runs on 115VAC. It requires a 20A outlet.
System Performance

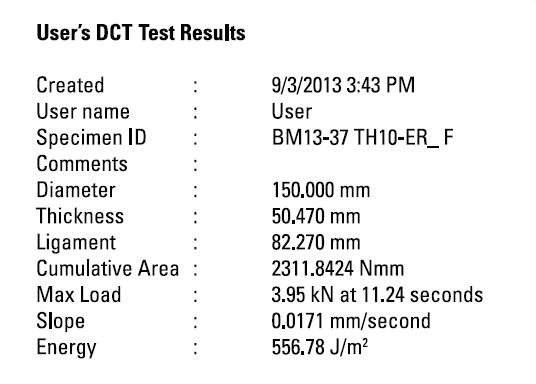

Test Results

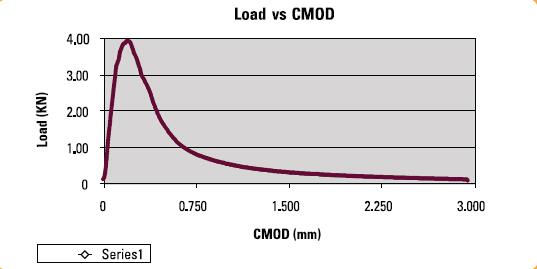

The energy is calculated from the area under
this curve and reported
in J/M^2 units. It is the energy to tear
the ligament down to 0.1KN.
The user gets an immediate view of the data when the test completes.
